ECODOG - URBAN BIN FOR DOG WASTE COLLECTION WITH EDUCATIONAL DISPENSER

TECHNICAL DATA SHEET – Item 1115

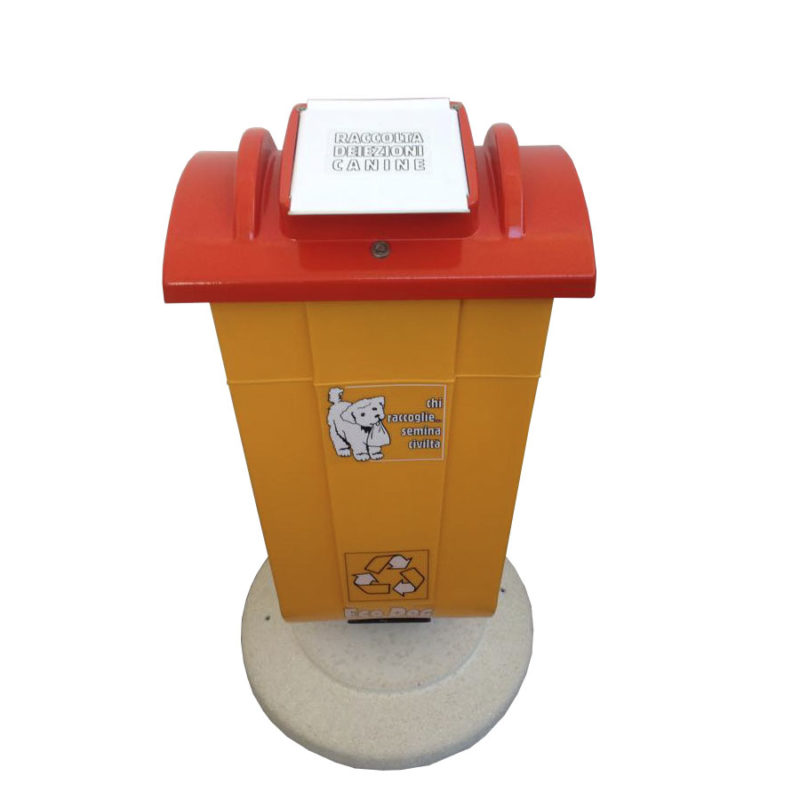

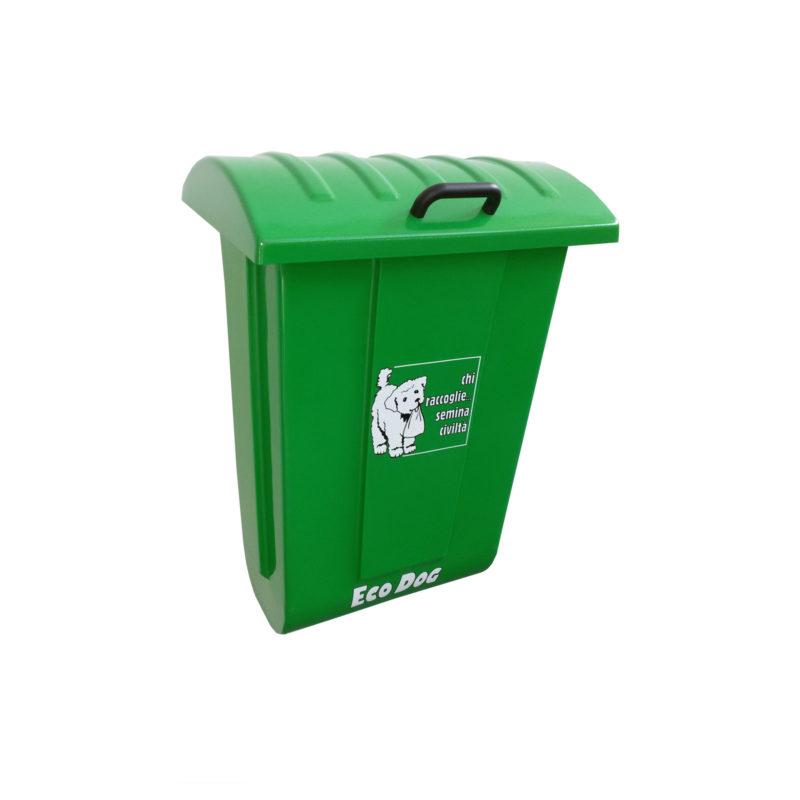

50 or 65-Liter CANINE WASTE COLLECTION CONTAINER

The container is made using rotational molding technology. This manufacturing method ensures high resistance to impacts, aging, and discoloration.
It has a truncated conical rectangular base, with top dimensions of 30×45 cm and a height of 62 cm for the 50-liter version, while the 65-liter version has a height of 75 cm.

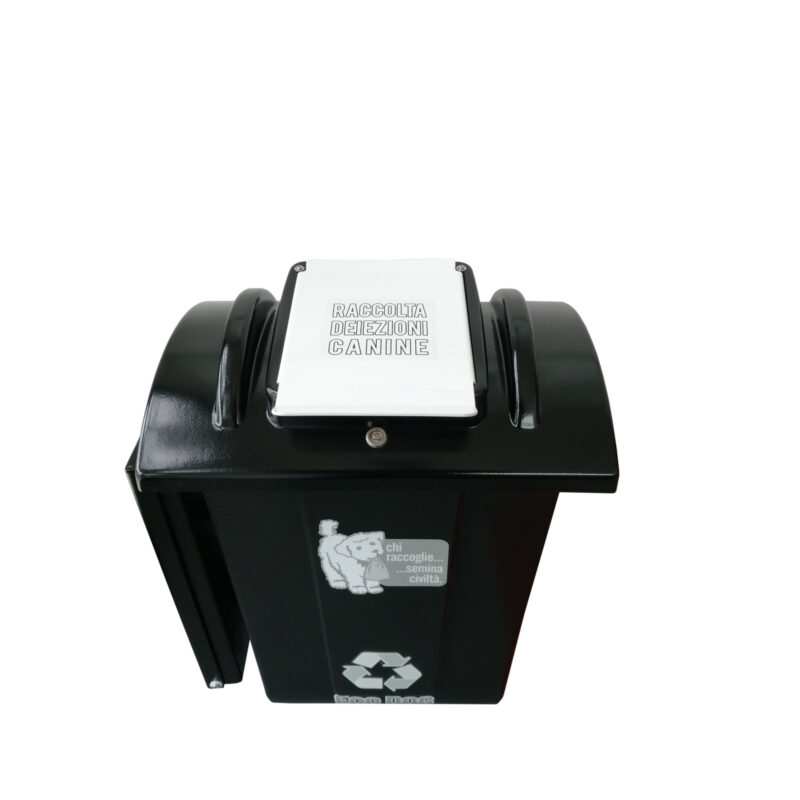

The lid is made of thermoformed ABS, painted with high-quality two-component paints, and secured to the container with a triangular lock.
It includes an anti-intrusion accessory made of white metacrylate ABS, which, when lifted, provides an 18×19 cm opening for waste disposal.
The container can be emptied using either a bag or a removable inner container, also made of polyethylene.

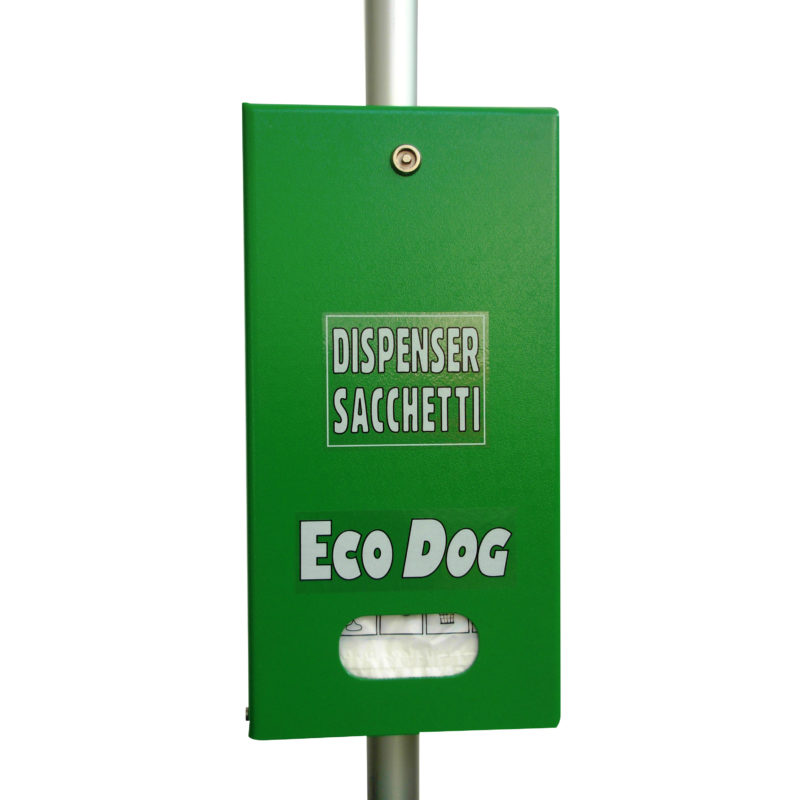

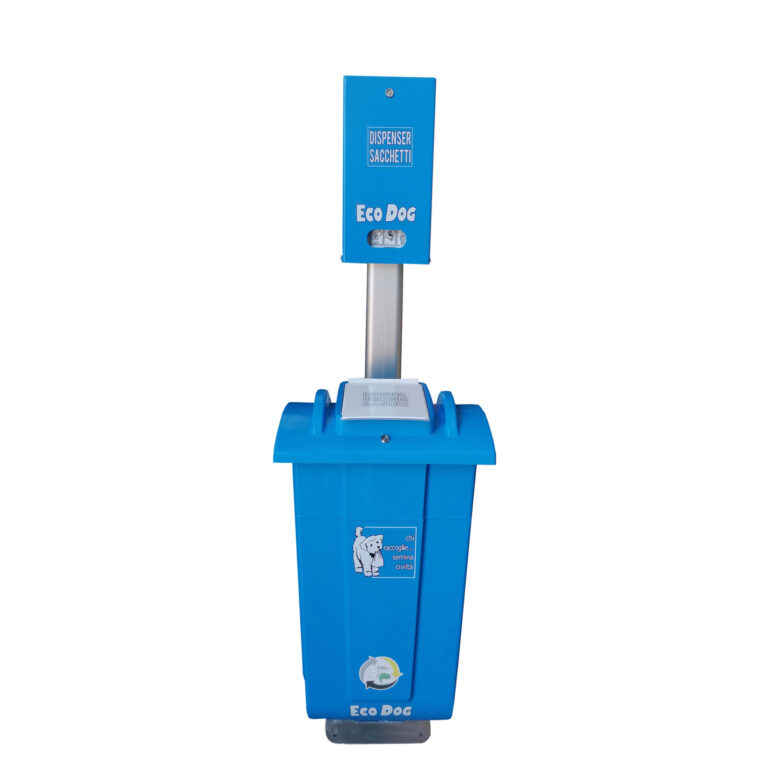

A bag dispenser for approximately 350 units, measuring 22.5×44.5×6 cm, is located above the container, all supported by a metal structure with a base measuring 30×30×5 mm thick in hot-dip galvanized iron, which secures an oval aluminum pole measuring 10.4×4.2 cm and 162 cm high.
This structure can be fixed to a floor or asphalt using the four 11 mm diameter holes in the base.

MINIMUM SPECIFICATIONS:
– Width: 47.5 cm
– Depth: 50 cm
– Total height: 175 cm
– Total weight: 20 kg
