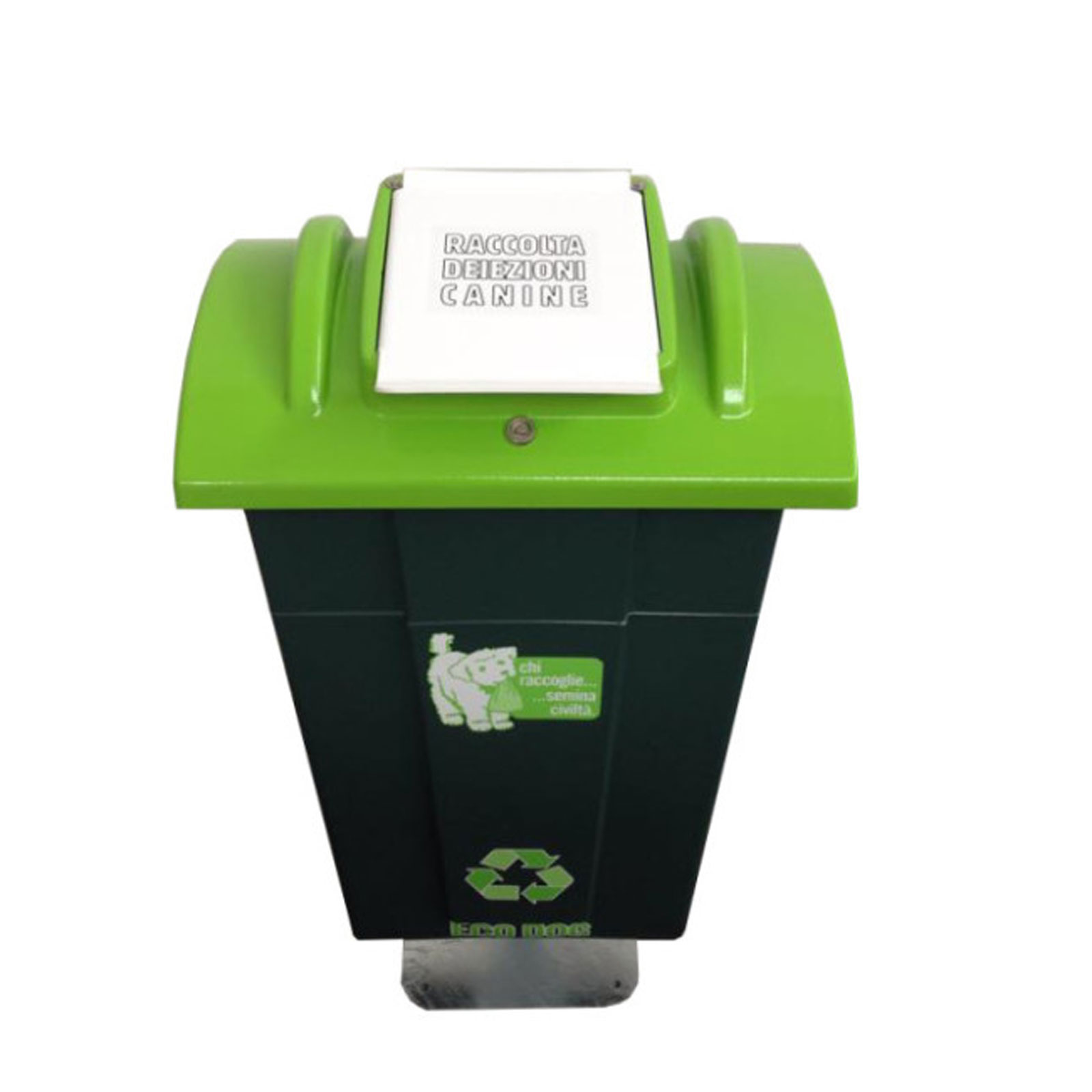

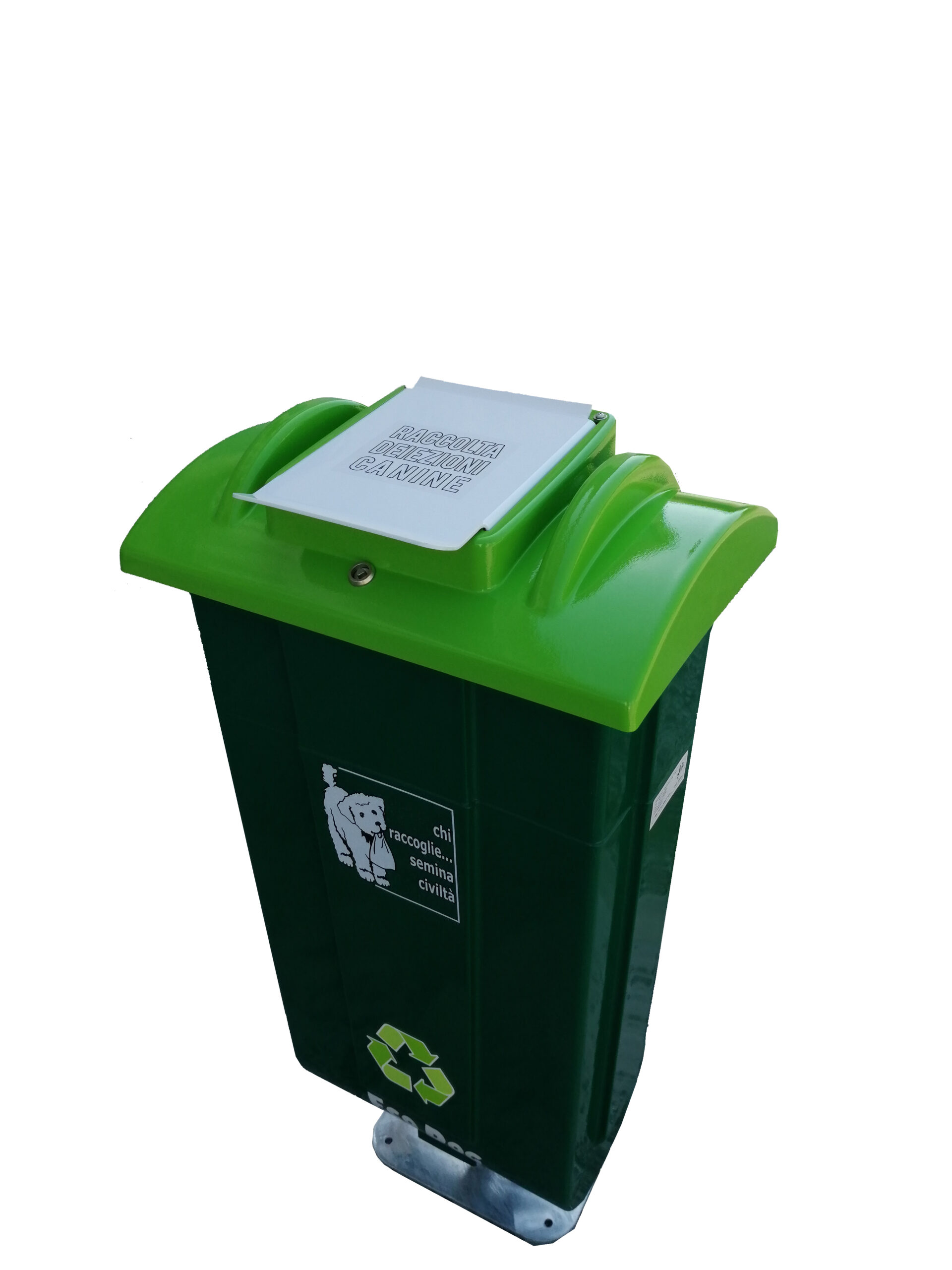

ECODOG - URBAN BIN FOR DOG WASTE COLLECTION WITH ANTI-INTRUSION LID 1109

TECHNICAL DATA SHEET ART. 1109 URBAN C 50 CONTAINER

The container is constructed using ROTATIONAL molding techniques. This material, molded in this manner, ensures great resistance to impacts, aging, and discoloration.

It features a truncated conical rectangular base, with dimensions at the top of 30×45 cm and a height of 62 cm. The lid of the container is made from thermoformed ABS and then coated with high-quality two-component paints. It is secured to the container with a triangular lock. It includes an anti-intrusion accessory made from white ABS acrylic, which, when lifted, provides an opening of 18×19 cm for waste disposal.

Emptying is carried out using a bag or an internal removable container, which is also made from polyethylene.

The metal structure has a base measuring 30×30 cm, with a thickness of 5 mm, made from hot-dip galvanized iron, which supports an aluminum oval measuring 10.4×4.4 cm and 85 cm in height. This structure can be anchored to a concrete floor or asphalt using the four 11 mm diameter holes located on the base.

MINIMUM CHARACTERISTICS:

-Width: approx. 53 cm
-Depth: approx. 40 cm
-Total height: approx. 100 cm
-Total empty weight: 14.5 kg
