TECHNICAL DATA SHEET ART. 1062 ECOLOGICAL ISLAND WITH 4 CONTAINERS OF 105 LITERS
MODEL: QUADRIFOGLIO

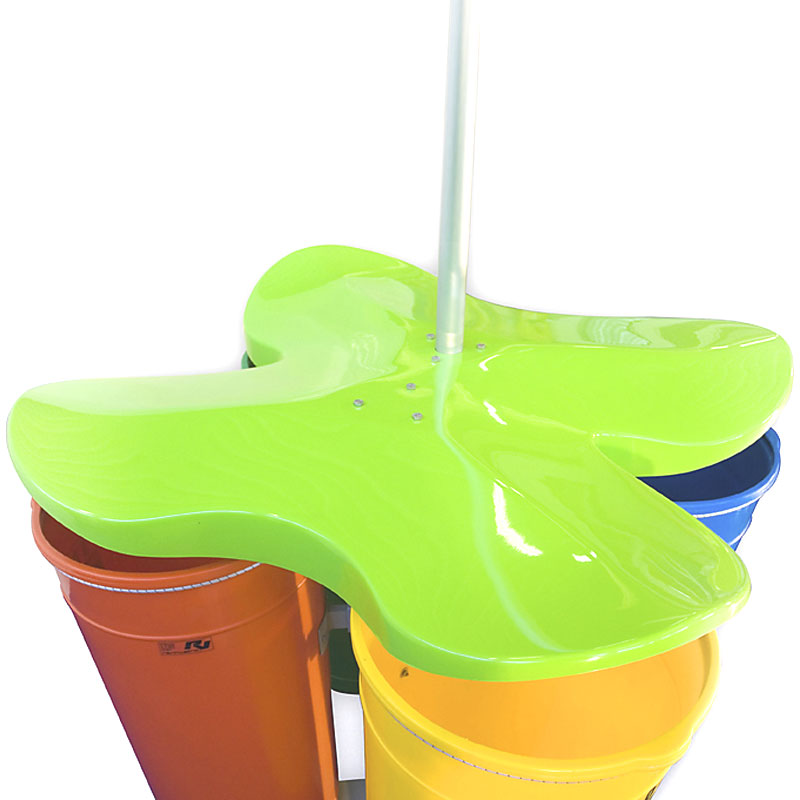

The “ECO 4 QUADRIFOGLIO” island consists of 4 containers with a capacity of 105 liters each, without lids, secured to a hot-dip galvanized iron structure. It features a single plastic (FRP) cover in the shape of a four-leaf clover. The space from the cover to the container, which allows for waste insertion, is 13.5 cm.
Emptying is done by sliding out the container after a quick unlocking operation. This system allows for the container to be transported to the disposal point.
Each module/container is conical, 80 cm high, with a base diameter of 37 cm and a top diameter of 44 cm, made of polyethylene using the ROTATIONAL molding technique.
This material, molded in this way, guarantees great resistance to impacts, aging, discoloration, corrosion, atmospheric agents, ultraviolet rays, and is scratch-resistant. Most importantly, it retains its shape and does not suffer dents after any impact.
The ECO 4 QUADRIFOGLIO is equipped with a flagpole made of aluminum with a diameter of 45 mm and a height of 370 mm, with a rotating flag made of fabric or PVC.
MINIMUM CHARACTERISTICS
-Single container capacity: 105 liters
-Height from the ground: 96 cm
-Bag dimensions: 70×110 cm
OVERALL DIMENSION: 100×100 cm, height 96 cm
